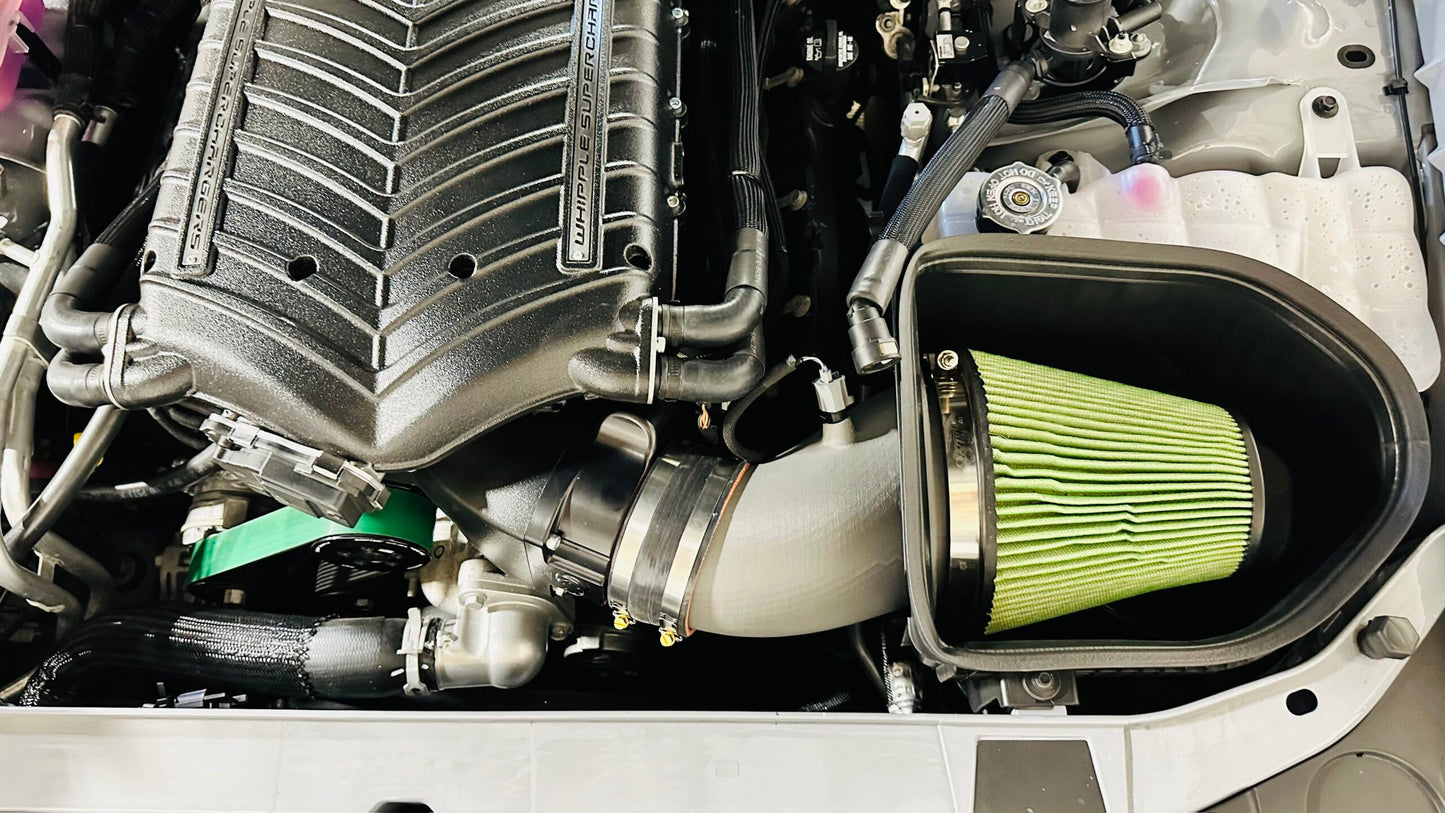

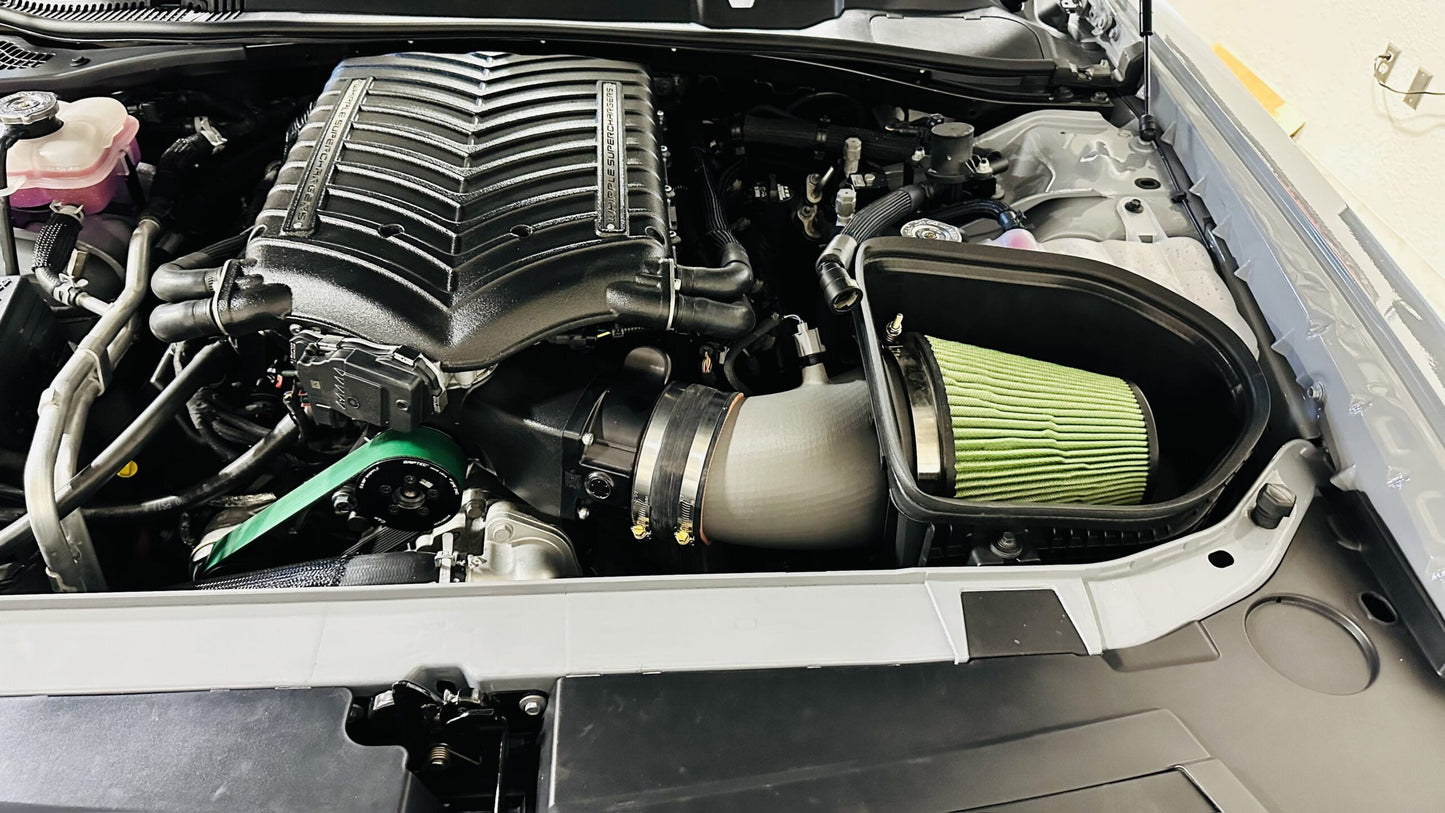

This is a one-piece intake that Fits the Stock Redeye airbox for added ram air from the hood and the headlight that uses a large 7-inch flange air filter GreenFilter and AFE both offer these filters and will need to be purchased separately Green filter here. The air path is as straight and smooth as it can be please message me if you have a specific throttle body size you are using.
This will come with stock with a 112mm outlet unless told otherwise. One thing to note this will not increase the supercharger whine this was specifically designed for power and airflow not increased Supercharger whine.

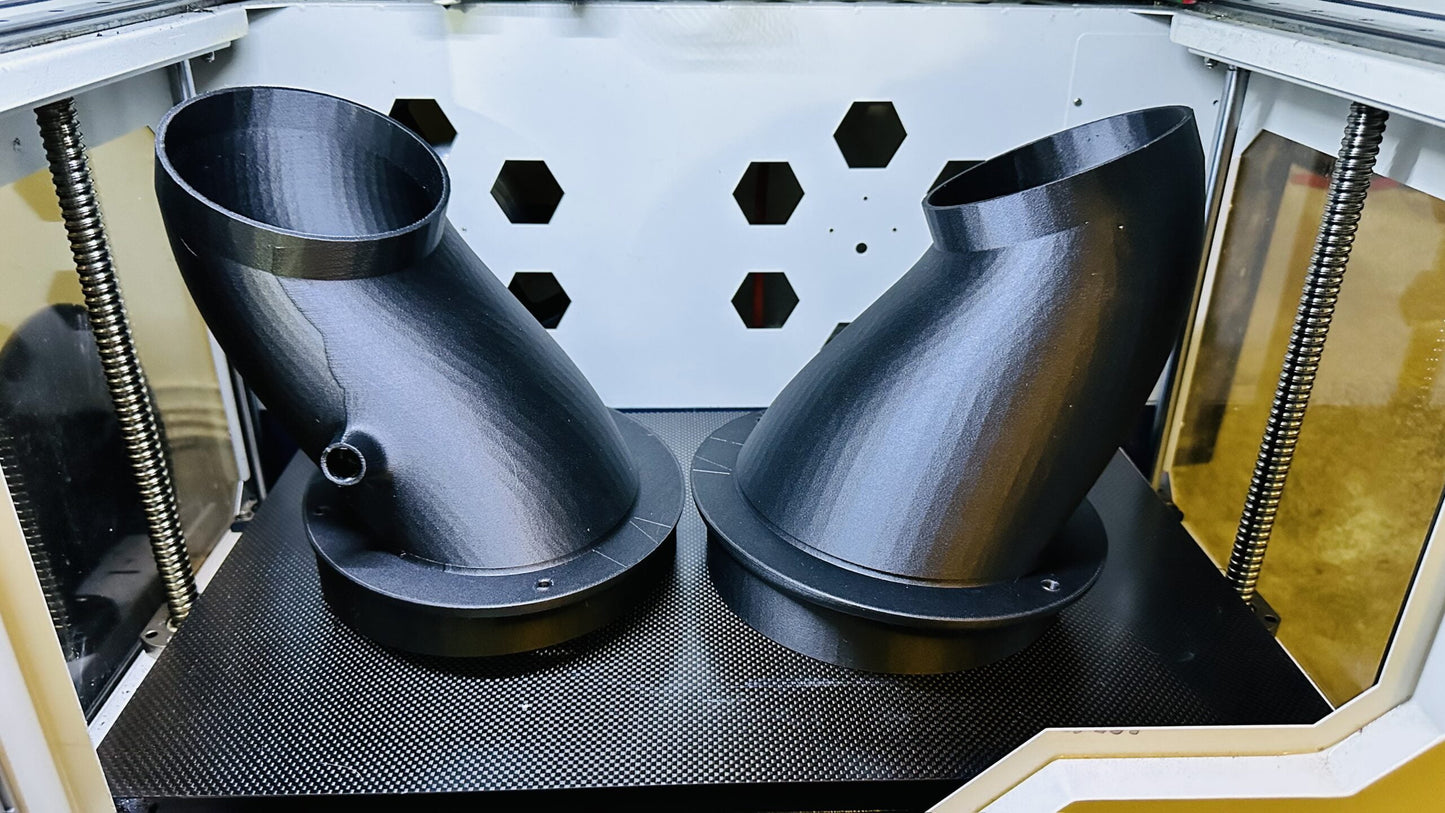

This kit includes 1x one-piece intake tube 3D printed in high temp material black carbon fiber reinforced 1x breather filter2x clamps1x rubber billows hose connector designed by D3D ( will be a tight fit but will stretch on) to withstand the Supercharger suctions and the flex of the engine.

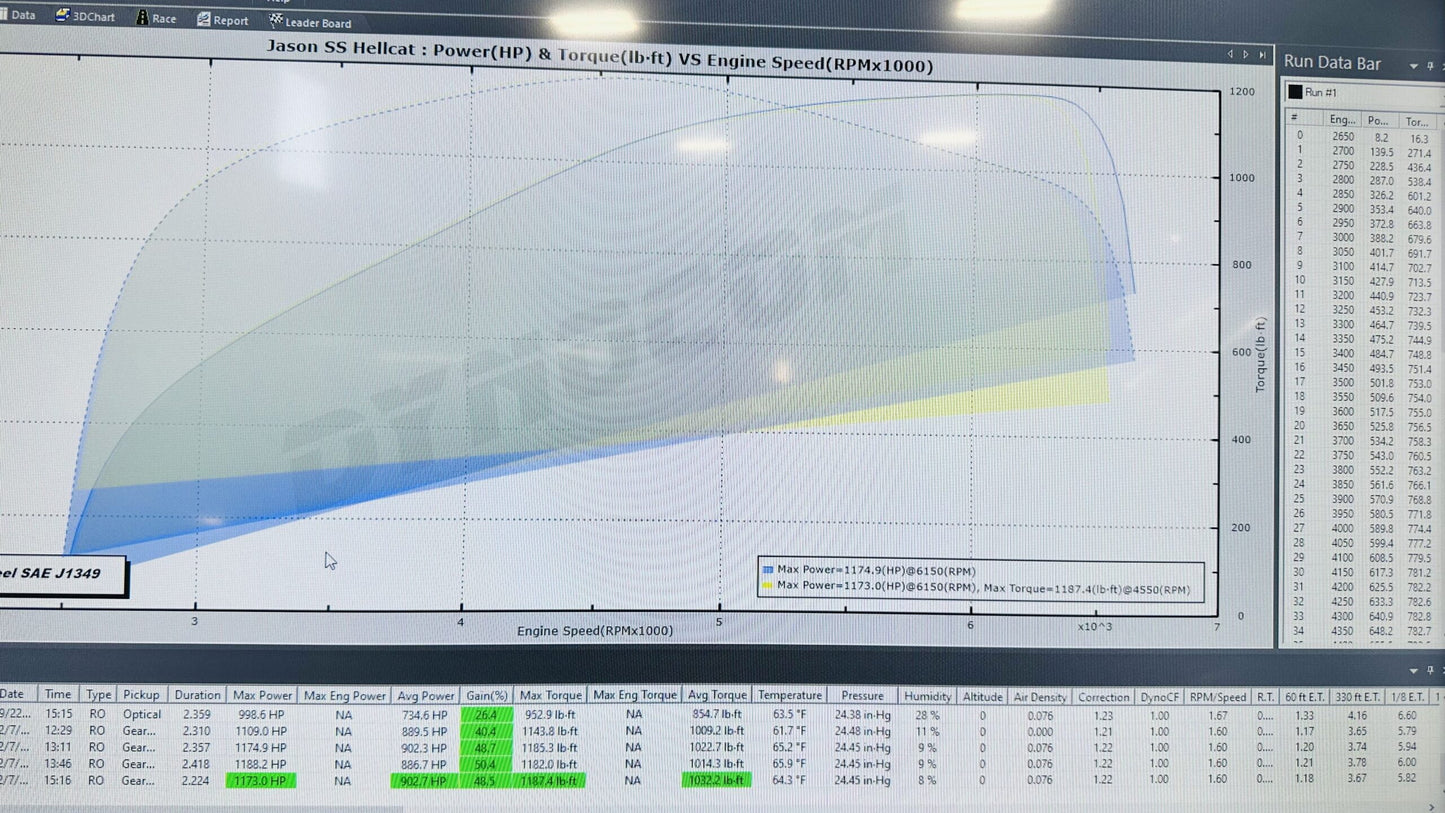

Static Dyno test with hood open showed the same dyno numbers as with the Whipple intake. This type of testing dose does not reveal real HP gains because of dodges ram air intake in the hood and headlight.
Note about color options. These are 3d printed per order and do take some time due to workload and size of the print. Search the shop for our finishing service. Prep paint and hydro-dipping add on
Black is Carbon fiber infused nylon
Gray is Glass fiber infused nylon
The video is on stock install but the same process is for the Whipple and stock airbox.
